Diesel Genset

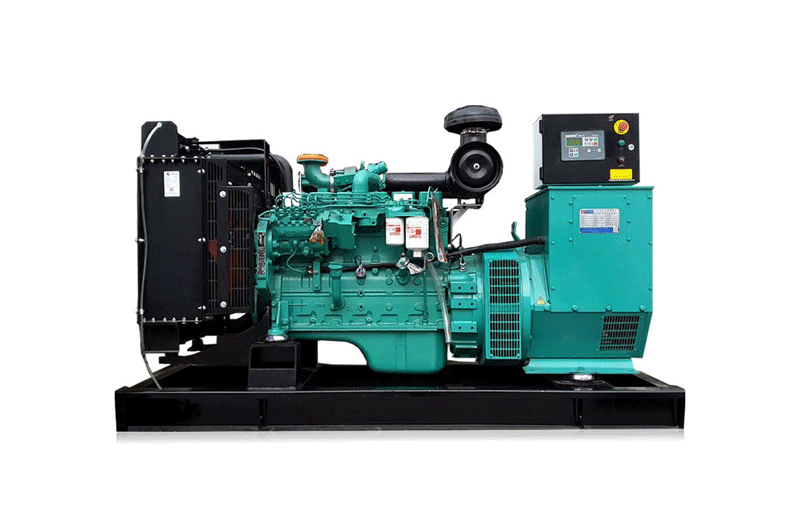

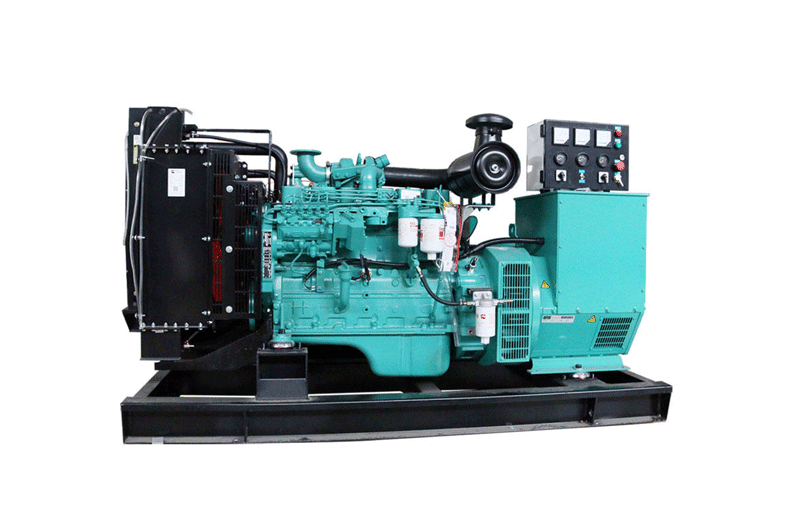

TBB-80KW Cummins Generator
PRP: 80 kW / 100 kVA
Standby: 88 kW / 110 kVA
Engine: 6BT5.9-G2
Product Overview
TBB-80KW Cummins Generator | tobetter
Overview
The TBB-80KW Cummins Generator provides stable and continuous power supply to cope with peak power demand. Equipped with genuine Cummins 6BT5.9-G2 engine, it is ideal for factories, commercial buildings and critical infrastructure. Featuring intelligent monitoring and comprehensive protection systems, it delivers reliable, high-efficiency power backup for daily and emergency use.
Applications
Industrial Factories | Commercial Buildings | Hospitals | Agricultural Facilities | Telecom Base Stations | Construction Sites | Small Enterprises | Emergency Backup Power
Specifications
| Model | TBB-80KW |
| Prime Power | 80 kW / 100 kVA |
| Standby Power | 88 kW / 110 kVA |
| Voltage | 400/230V |
| Frequency | 50 Hz |
| Engine | Cummins 6BT5.9-G2 |
| Engine Type | 6-Cylinder In-line, Turbocharged |
| Displacement | 5.9 L |
| Rated Speed | 1,500 RPM |
| Compression Ratio | 17.3:1 |
| Start Motor Voltage | 24V |
| Alternator Type | Brushless, Self-Exciting, 3-Phase |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP23 |
| Connecting Type | 3 Phase and 4 Wires |
| ATS Compatible | Yes |
| Altitude | ≤1,000 m |
Core Advantages
1. Stable 80kW Power Output
80kW continuous prime power with 10% overload capacity for peak demand, steadily supporting industrial equipment and commercial systems without pressure.
2. Original Cummins 6-Cylinder Engine
Cummins 6BT5.9-G2 in-line turbocharged engine with 5.9L displacement and 17.3:1 compression ratio, fast load response, stable frequency and low fuel consumption.
3. Intelligent Monitoring & Full Protection
Smart control panel supports real-time operating data monitoring, with multiple protection against overload, low oil pressure, high temperature and overcurrent to ensure unit safety.
4. High Efficiency & Low Emission
Optimized combustion technology meets environmental emission standards, effectively reducing fuel cost and long-term operation expenses.
5. Multiple Optional Configurations
Available in open type and silent canopy type, perfectly adapting to different site and installation environment requirements.
6. Industrial-Grade Durability
Strict factory testing and high-standard production process enable stable operation in factories, hospitals, agriculture and communication base stations, adapting to complex working conditions.
Get a Quote
Contact us for factory-direct pricing, custom configurations and full after-sales service. We provide professional technical consultation, installation guidance and official warranty support for the tbb-80KW Cummins Generator.
