Diesel Genset

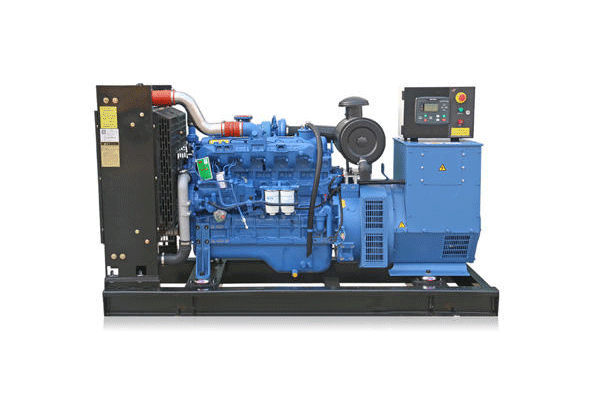

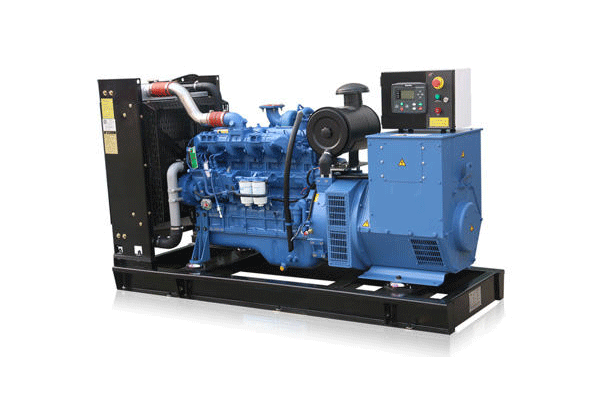

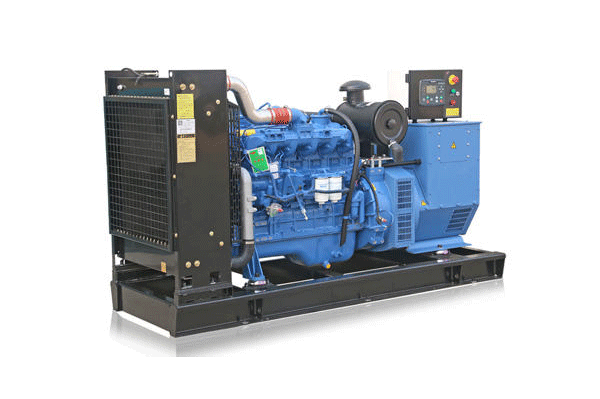

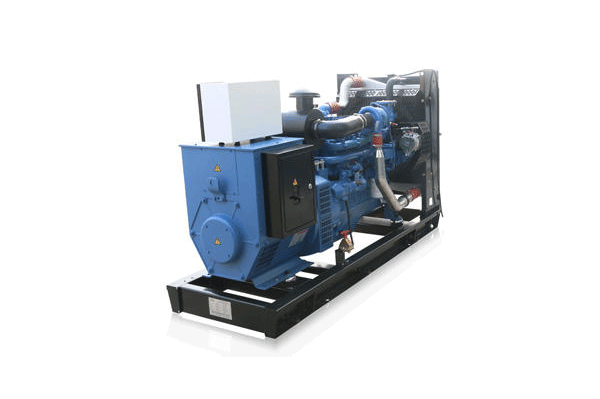

TBB-100KW Yuchai Generator
PRP: 100 kW / 125 kVA
Standby: 110 kW / 137.5 kVA
Engine: YC4A190-D30
Product Overview
TBB-100KW Yuchai Diesel Generator | tobetter
100 kW Prime · 125 kVA · 400/230V · Yuchai 4-Cylinder Engine
Overview
The TBB-100KW Yuchai Diesel Generator is your reliable solution to avoid power failure losses. Equipped with the original Yuchai YC4A190-D30 turbocharged engine, it delivers stable 100kW prime power. Designed for industrial facilities, construction projects and critical infrastructure, it features outstanding durability and low fuel consumption for uninterrupted daily and emergency power supply.
Applications
Industrial Plants | Construction Sites | Hospitals | Data Centers | Telecom Facilities | Remote Areas | Commercial Buildings | Emergency Backup Power
Specifications
| Model | TBB-100KW |
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA |
| Voltage | 400/230V |
| Frequency | 50 Hz |
| Engine | Yuchai YC4A190-D30 |
| Engine Type | 4-Cylinder In-line, Turbocharged |
| Displacement | 4.837 L |
| Rated Speed | 1,500 RPM |
| Compression Ratio | 17.5:1 |
| Start Motor Voltage | 24V |
| Alternator Type | Brushless, Self-Exciting, 3-Phase |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Connecting Type | 3 Phase and 4 Wires |
| ATS Compatible | Yes |
| Altitude | ≤1,000 m |
Core Advantages
1. Stable 100kW Power Output
100kW continuous prime power with 10% overload capacity, stably supporting factory production lines, medical equipment and critical system operation without pressure.
2. Original Yuchai Turbo Engine
4-cylinder in-line turbocharged Yuchai engine with 4.837L displacement and 17.5:1 compression ratio, fast load response and high thermal efficiency.
3. ATS Automatic Switch Support
Compatible with ATS to realize automatic power switching during power outage, 24V starting system ensures reliable cold start in harsh working conditions.
4. Low Fuel & Easy Maintenance
Optimized combustion structure saves fuel consumption, extended maintenance intervals reduce overall operating costs, and intuitive control panel displays key parameters clearly.
5. Industrial Continuous Operation
Heavy-duty structure adapts to long-time continuous operation on construction sites and manufacturing plants, stable performance in harsh environments.
6. Wide Application Adaptability
Ideal for data centers, telecom base stations and remote areas with unstable grid power, providing reliable emergency and standby power guarantee.
Get a Quote
Contact us for factory-direct pricing, custom configurations and full after-sales service. We provide professional technical consultation, installation guidance and official warranty support for the TBB-100KW Yuchai Diesel Generator.
Company Profile

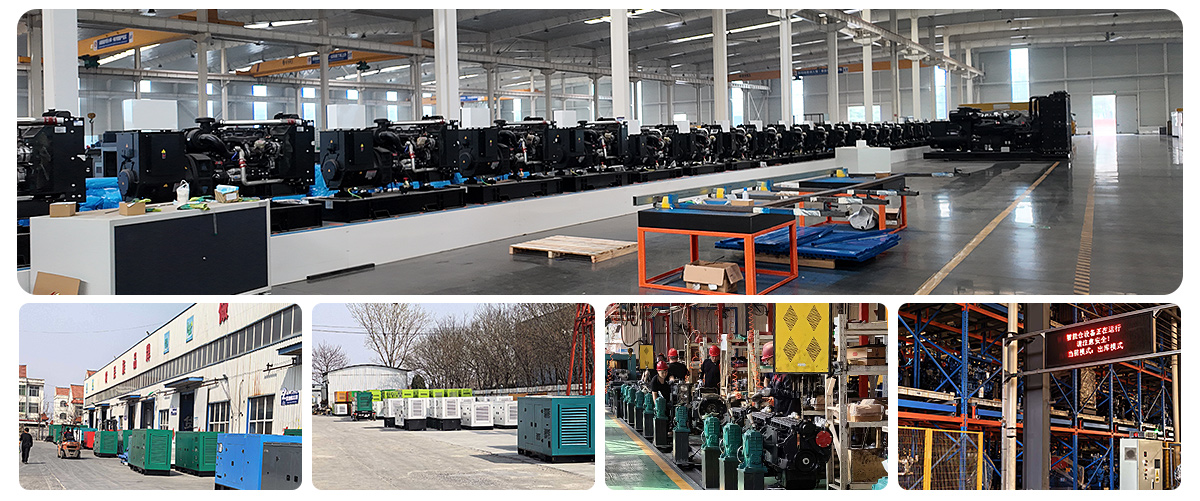

Shandong Tobetter Machinery Co., Ltd. is a national high-tech heavy machinery manufacturer founded in 2015. Equipped with a 26664㎡ workshop and over 300 professionals, we specialize in R&D and export of construction machinery, drilling rigs and generators. Boasting 60 patents and global certifications, our products are exported to over 50+ countries, dedicated to supplying reliable cost-effective equipment for worldwide clients.
