Diesel Genset

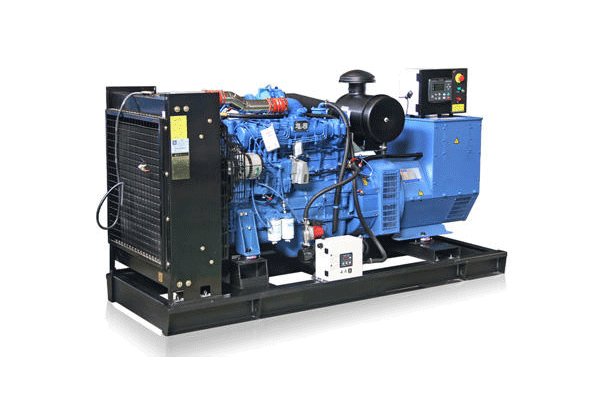

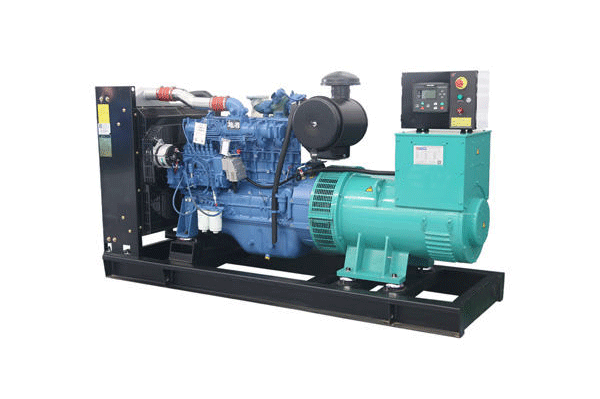

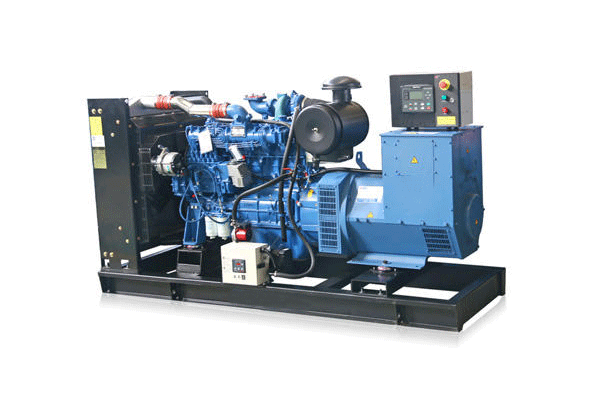

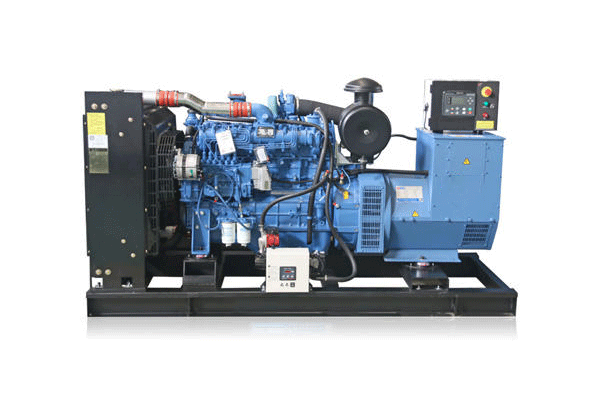

TBB-150KW Yuchai Generator
PRP: 150 kW / 187.5 kVA
Standby: 165 kW / 206.25 kVA
Engine: YC6A245-D30
Product Overview
TBB-150KW Yuchai Generator | tobetter
Reliable Compact Power | Uninterrupted Operations | Low Total Cost of Ownership
Product Overview
The TBB-150KW Yuchai Generator from Jutop delivers steady, dependable prime and standby power for your core operations. Built around the robust Yuchai YC6A245-D30 engine, it balances exceptional fuel efficiency, heavy-duty durability, and stable power output. This unit is engineered to protect your business from costly unplanned outages, with long service life and low maintenance costs for industrial, commercial, and critical infrastructure applications.
Applications
Construction Sites | Manufacturing Plants | Commercial Buildings | Healthcare Facilities | Mining Operations | Oil & Gas Fields | Railway Systems | Residential Complexes | Emergency Backup Power
Specifications
| Model | TBB-150KW |
| Prime Power | 150 kW / 187.5 kVA |
| Standby Power | 165 kW / 206.25 kVA |
| Voltage | 400/230V |
| Rated Current | 270 A |
| Frequency | 50 Hz |
| Engine | Yuchai YC6A245-D30 |
| Engine Type | 6-Cylinder In-line, Turbocharged |
| Displacement | 7.255 L |
| Bore × Stroke | 108 mm × 132 mm |
| Compression Ratio | 17.5:1 |
| Engine Rated Speed | 1,500 RPM |
| Start Motor Voltage | 24V |
| Alternator Type | Brushless, Self-exciting |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
| Power Factor | 0.8 |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Altitude | ≤ 1,000 m |
Core Value Advantages
1. Stable Power to Eliminate Costly Downtime
Delivers 150kW continuous prime power with 10% overload capacity for peak demand, reliably powering your critical equipment and facilities.
2. Premium Yuchai Engine for Long-Term Durability
6-cylinder turbocharged Yuchai engine with industry-renowned reliability, built for non-stop operation with extended service life and low failure rates.
3. Optimized Fuel Efficiency to Cut Operating Costs
High compression ratio optimizes combustion, delivering powerful output with low fuel consumption to greatly reduce your long-term running costs.
4. Clean Stable Power for Sensitive Equipment
Brushless self-exciting alternator provides precise voltage and frequency regulation, ensuring safe, stable power for sensitive electronics and precision machinery.
5. Heavy-Duty Build for Tough Environments
IP21 protection and Class H insulation deliver reliable performance in harsh industrial and outdoor operating conditions.
6. Easy Maintenance for Minimal Service Downtime
User-friendly design simplifies routine servicing, with a reliable 24V starting system for consistent startup even in challenging environments.
Contact for Quote
Contact us today for factory-direct pricing, custom configurations, and full technical support for the TBB-150KW Yuchai Generator.
