Diesel Genset
TBB-100KW Weichai Generator
PRP: 100 kW / 125 kVA
Standby: 110 kW / 137.5 kVA
Engine: WP6D132E200
Product Overview
TBB-100KW Weichai Generator | tobetter
Dependable Weichai Power | Uninterrupted Operations | Cost-Effective Performance
Product Overview
The TBB-100KW Weichai Generator from Tobetter is built around a genuine industry-renowned Weichai engine, delivering rock-solid power stability, robust output, and exceptional fuel efficiency. Perfect for both prime continuous operation and emergency standby power, it protects your business from costly unplanned outages. Its compact design enables easy installation and maintenance across a wide range of working environments, with long-term durability and low total cost of ownership.
Applications
Factories | Mines | Hospitals | Shopping Malls | Telecom Base Stations | Construction Sites | Commercial Buildings | Residential Complexes | Emergency Backup Power
Specifications
| Model | TBB-100KW |
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA |
| Voltage | 400/230V |
| Rated Current | 180 A |
| Frequency | 50 Hz |
| Engine | Weichai WP6D132E200 |
| Engine Type | 6-Cylinder In-line |
| Displacement | 6.75 L |
| Bore × Stroke | 105 mm × 130 mm |
| Compression Ratio | 18:1 |
| Engine Rated Speed | 1,500 RPM |
| Alternator Type | Brushless SHUNT |
| Number of Phase | 3 |
| Phase and Connection | 3, Y |
| Power Factor | 0.8 |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Altitude | ≤ 1,000 m |
Core Value Advantages
1. Stable Power to Eliminate Costly Downtime
Delivers 100kW continuous prime power with 10% overload capacity for peak demand, reliably powering your manufacturing equipment, medical facilities and critical operations.
2. Premium Weichai Engine for Long-Term Durability
Heavy-duty 6-cylinder in-line Weichai engine with robust load-bearing capacity, built for non-stop operation with extended service life and low failure rates.
3. Optimized Fuel Efficiency to Cut Operating Costs
High compression ratio optimizes combustion, delivering powerful output with ultra-low fuel consumption to greatly reduce your long-term running costs.
4. Clean Stable Power for Sensitive Equipment
Brushless SHUNT alternator provides precise voltage and frequency regulation, ensuring safe, stable power for sensitive electronics and critical systems.
5. Smart Control for Safe, Hassle-Free Operation
Intelligent system with automatic alarm and shutdown protection for key risks, real-time monitoring to keep your generator running safely and efficiently.
6. Flexible Configurations to Fit Diverse Needs

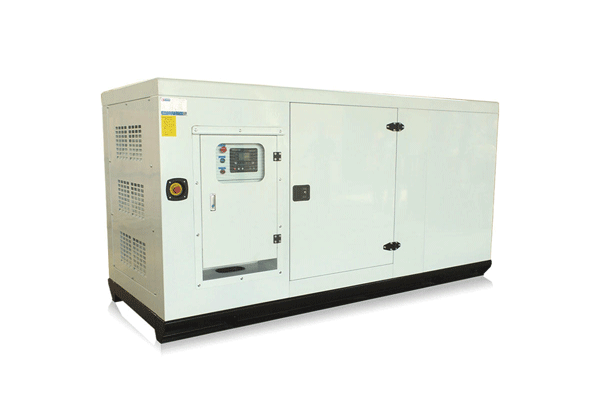

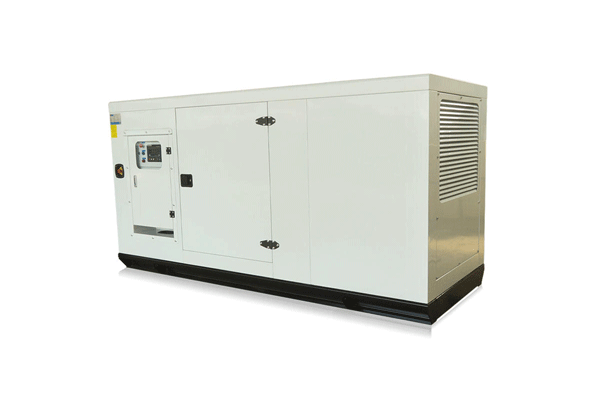

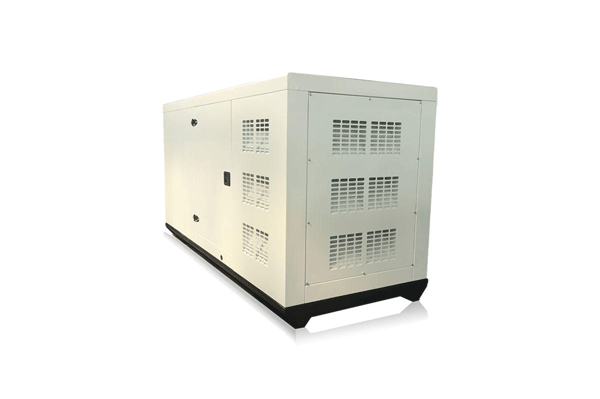

Customizable with silent canopy, mobile trailer, or parallel operation functions, fully adaptable to your specific installation and operational requirements.
Contact for Quote
Contact us today for factory-direct pricing, custom configurations, and full technical support for the TBB-100KW Weichai Generator.
